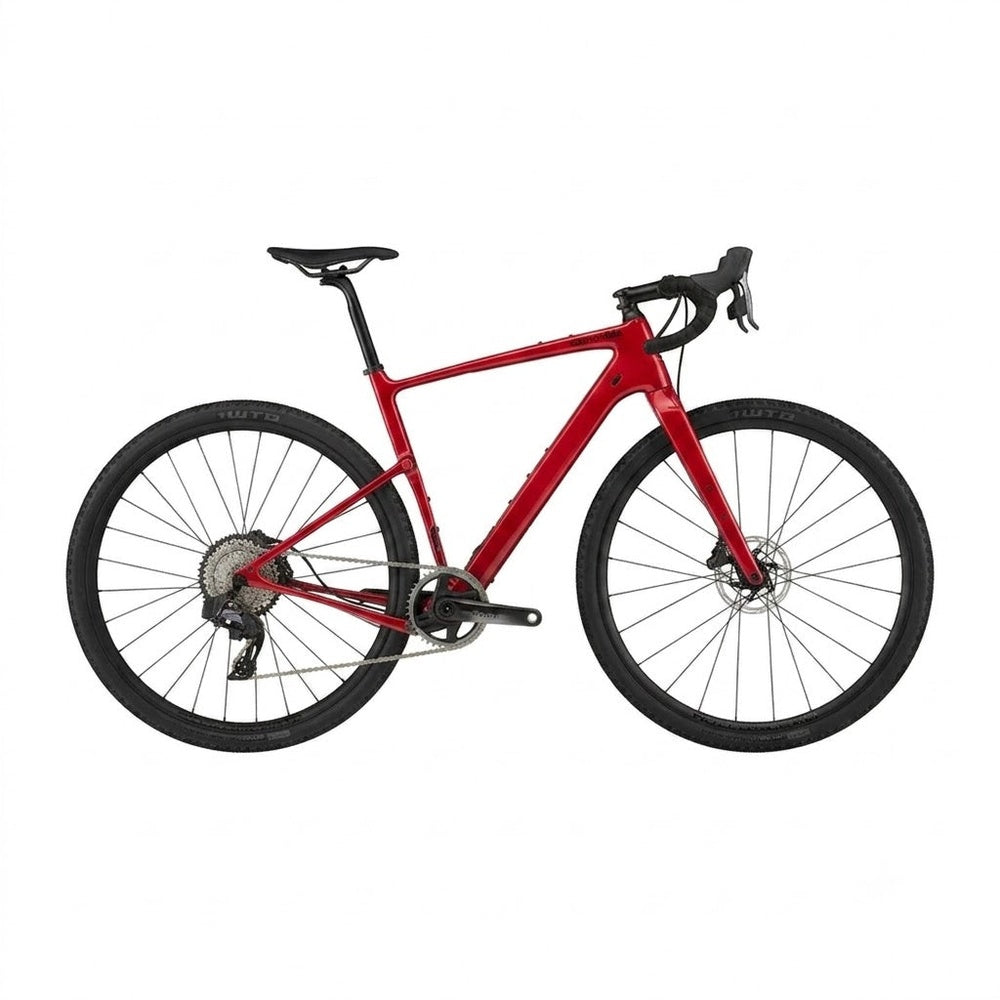

The Cannondale Topstone Carbon 1 Lefty blends a lightweight carbon frame with Kingpin rear compliance and a Lefty Oliver suspension fork to deliver smooth, controlled gravel performance. It’s built for long days in mixed terrain, offering ample tire clearance, integrated storage, and a modern gravel geometry that balances stability with agility.
-
Premium carbon frame with Kingpin rear suspension system (up to 30 mm rear compliance)
-
Lefty Oliver carbon suspension fork (40 mm travel) with lockout and low-friction bushings
-
Integrated StashPort under the down-tube water-bottle mount with included StashBag for essentials
-
Internal cable routing and Conceal™ Stem for a tidy cockpit
-
Shimano GRX 1×12 drivetrain with 40 T chainring and 11–42 T cassette
-
Shimano GRX hydraulic disc brakes with 160 mm rotors front and rear
-
HollowGram 22 carbon wheelset, 700 × 44 C WTB Raddler tires, tubeless-ready
-
Proportional Response frame construction tuned to each size for optimal stiffness and comfort
-
Dropper-post ready seat tube and UDH derailleur hanger for future upgrades
-
Clearance for up to 700 × 45 mm tires (frame) and 700 × 47 mm tires (fork)
-
Geometry tuned for gravel racing and adventure, with slack head angle and stable wheelbase
Specifications:
Details
-
-
Model Name
Topstone Carbon 1 Lefty
-
Frameset
-
Frame
Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
-
Fork
Lefty Oliver Carbon, 30mm travel, lockout, Chamber Damper w/ All-Over tune, ISO High-Ride air spring, tapered steerer, 700c, 55mm offset
-
Headset
Integrated, Carbon, 1-1/8" - 1-1/2"
Drivetrain
-
Rear Derailleur
SRAM Force eTap AXS XPLR
-
Shifters
SRAM Force eTap AXS, 12-speed
-
Chain
SRAM Force, 12-speed
-
Crank
SRAM Force Direct Mount, 40T
-
Rear Cogs
SRAM XG-1271 XPLR, 10-44, 12-speed
-
Bottom Bracket
SRAM DUB BSA Road 68 Wide
Brakes
-
Brakes
SRAM Force eTap AXS hydraulic disc, 160/160mm CenterLine rotors
-
Brake Levers
SRAM Force eTap AXS
Wheels
-
Rims
HollowGram G-S 27 Carbon, 700c, 27mm internal width, 21mm deep, 28h, hookless, tubeless compatible
-
Spokes
Formula Grand Forza, double butted
-
-
-
Hubs
(F) HollowGram, Lefty, centerlock / (R) HollowGram 12x142mm w/ DT Swiss 350 internals, centerlock
-
Tires
WTB Raddler TCS Light, 700x44c, tubeless ready (Europe/UK - Vittoria Mezcal III 700x44c ANT tubeless compatible)
-
Front Tire
WTB Raddler TCS Light, 700x44c, tubeless ready (Europe/UK - Vittoria Mezcal III 700x44c ANT tubeless compatible)
-
Rear Tire
WTB Raddler TCS Light, 700x44c, tubeless ready (Europe/UK - Vittoria Mezcal III 700x44c ANT tubeless compatible)
Components
-
Handlebar
Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
-
Stem
Cannondale 1, 7050 Alloy, -7°
-
Grips
Fizik Solocush Soft, 3mm
-
Saddle
Fizik Terra Argo X3, kium rails
-
Seatpost
SAVE Carbon, 27.2x350mm (XS-L), 400mm (XL)
Extra
-
Extra 1
StrapRack tool/stuff holder
